Ultra High Pneumatic Pressure Reel

Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1000
Product serial number
EB800PPRSH100D08CS
Category：
Products
Quantity
-
+
Stock:
0

For more information, please send an email or call our hotline.

13586898919
info@ebenalp.com
Item No.:
EB800PPRSH100D08CS
Reel Weight:
286 LBS
Max Pressure:
40610 PSI
Hose I.D.:
3/8 Inch
Hose O.D.:
0.610 Inch
Hose Outlet:
9/16-18UNF
Reel Inlet:
3/4-16B
Max Hose Length:
328 FT
Driven Type:
Pneumatic Motor Driven
Size Index:
1
Note:

Product Customization is acceptable.

1
Description
Parameters
Features
Specifications
Applications
Size Index
Downloads

Ultra-high pressure reel, usually refers to a high-pressure water jet hose reel with a pressure above 500 bar. This type of reel has a high working pressure and has strict requirements on joints, sealing and rotary sealing processes and materials. Used in some large-scale equipment derusting, crushing, cutting and other occasions

Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table

Ultra-high pressure reel, usually refers to a high-pressure water jet hose reel with a pressure above 500 bar. This type of reel has a high working pressure and has strict requirements on joints, sealing and rotary sealing processes and materials. Used in some large-scale equipment derusting, crushing, cutting and other occasions

Model Reel Weight Max Pressure HOSE  I.D. HOSE  O.D. Hose Outlet Reel Inlet Maximum hose length Size Index
kg lbs bar psi mm Inch mm Inch NPT NPT m ft
EB800PPRSH100D08CS 130 286 2800 40610 8  3/8 17.3 0.681  9/16-18UNF 3/4-16B 100 328 1
If you want to replace other hose models and lengths, please consult the sales dealer or sales engineer

Ultra-high pressure reel, usually refers to a high-pressure water jet hose reel with a pressure above 500 bar. This type of reel has a high working pressure and has strict requirements on joints, sealing and rotary sealing processes and materials. Used in some large-scale equipment derusting, crushing, cutting and other occasions

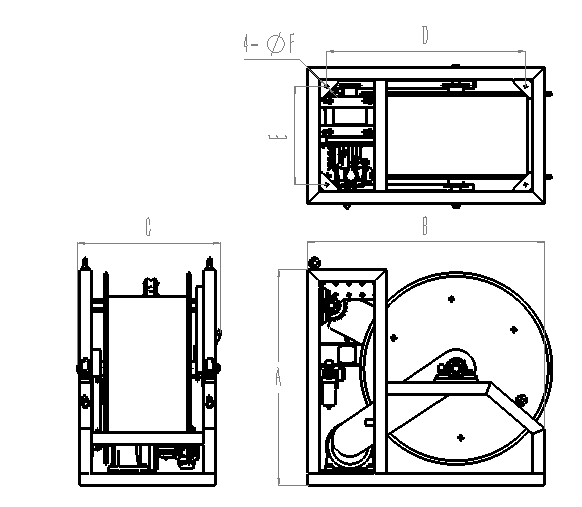

Reel Dimensions
Size Index 1
  mm Inch
A 900 35 3/8
B 990 39
C 600 23 5/8
D 830 32 5/8
E 410 16 1/8
F 13  1/2
