Product Category
EBENALP Fire Stainless Steel Hose Reel
Belonging to the series:
EBENALP Fire Stainless Steel Hose Reel
Item No.:
EB460MRSH
Reel Weight:
60
Max Pressure:
290
Hose I.D.:
1
Hose O.D.:
1.437
Hose Outlet:
M36X2
Reel Inlet:
G1
Max Hose Length:
66
Driven Type:
Hand Crank
Size Index:
1
Note:
Product Customization is acceptable.
- Description
- Features
- Specifications
- Applications
- Size Index
- Downloads
-
- Commodity name: EBENALP Fire Stainless Steel Hose Reel
- Commodity ID: EB460D25SS
- Item No.: EB460MRSH
- Reel Weight: 60
- Max Pressure: 290
- Hose I.D.: 1
- Hose O.D.: 1.437
- Hose Outlet: M36X2
- Reel Inlet: G1
- Max Hose Length: 66
- Driven Type: Hand Crank
- Size Index: 1
- Note: Product Customization is acceptable.
EBENALP fire stainless steel hose reel is designed for fast retracting and releasing fire hose.
Use this product to improve the working efficiency, and keep the site orderly, quick fire extinguishing, reduce the time of personnel on site.
Suitable for various occasions requiring emergency rescue.
-
1. The product structure is simple and the size is compact.
2. Choosing flexible fire hose suitable for winding to extend service life.
3. Remote control retract and release, real-time lock.
4. The winding speed can be set to meet various needs.
5. Designed with hose sorting device to ensure orderly recovery of hoses.
-
Model Reel Weight Greatest Pressure HOSE I.D. HOSE O.D. Hose Outlet Reel Inlet Maximum hose length Model Weight Greatest Pressure Size Index kg lbs bar pis mm Inch mm Inch mm BSP m ft kg lbs bar psi EB460MRSH+LengthD25SS 27 60 60 870 25 1 36.5 1.437 M36X2 G1 20 66 EB460MRSHD25SS 27 60 20 290 1 If you want to replace other hose models and lengths, please consult the sales dealer or sales engineer -
It is suitable for various occasions where emergency rescue is needed.
-

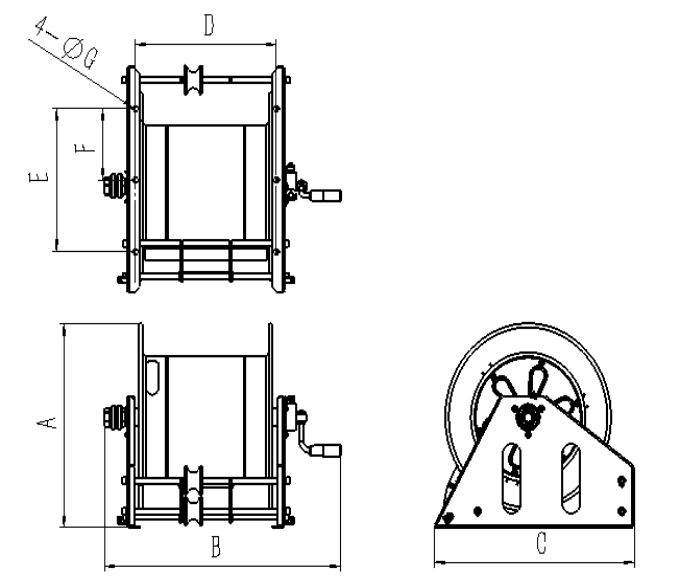

Reel Dimensions Size Index 1 mm Inch A 500 19 5/8 B 656 25 7/8 C 555 21 7/8 D 391 15 3/8 E 350 13 3/4 F 175 6 7/8 G 11 3/8
