Product Category
High Pressure Water Mist Fire Hydrant Fire Hose Reel
Belonging to the series:
High Pressure Water Mist Fire Hydrant Fire Hose Reel
Item No.:
EB460SRSH10
Reel Weight:
44
Max Pressure:
5076
Hose I.D.:
3/8
Hose O.D.:
0.787
Hose Outlet:
M18X1.5
Reel Inlet:
M22X1.5
Max Hose Length:
82
Driven Type:
Spring Driven
Size Index:
1
Note:
Product Customization is acceptable.
- Description
- Features
- Specifications
- Applications
- Size Index
- Downloads
-
- Commodity name: High Pressure Water Mist Fire Hydrant Fire Hose Reel
- Commodity ID: EB460SRSH10
- Item No.: EB460SRSH10
- Reel Weight: 44
- Max Pressure: 5076
- Hose I.D.: 3/8
- Hose O.D.: 0.787
- Hose Outlet: M18X1.5
- Reel Inlet: M22X1.5
- Max Hose Length: 82
- Driven Type: Spring Driven
- Size Index: 1
- Note: Product Customization is acceptable.
The high-pressure pump set is connected to the indoor water mist fire hydrant through the high-pressure pipe network. Indoor water mist fire hydrant including high-pressure water mist spray fire extinguishing gun and hose reel. High-pressure hose is installed in the hose reel, One end of the high-pressure hose is connected to the high-pressure ball valve, the ball valve can be opened quickly when used.
High-pressure water mist fire extinguishing greatly saves water consumption, which is a few thousandths of that of traditional fire extinguishing.
Wide range of fire extinguishing, fast speed, fire extinguishing effect, especially suitable for archives, electrical control room, initial fire site, after fire extinguishing, secondary disaster is small.
-
1. Simple product structure, compact size, saving installation space.
2. High-quality high-pressure hoses to extend the service life.
3. Real-time locking, pull out the hose to locate at any position.
4. Optional bracket and multi-position adjustable outlet make installation and use easy and quick.
-
Model Reel Weight Max Pressure HOSE I.D. HOSE O.D. Hose Outlet Reel Inlet Max Hose Length Model Weight Max Pressure Size Index kg lbs bar pis mm Inch mm Inch mm mm m ft kg lbs bar psi EB460SRSH10+Length 20 44 350 5076 10 3/8 20 0.787 M18X1.5 M22X1.5 25 82 EB460SRSH10H 20 44 350 5076 1 If you want to replace other hose models and lengths, please consult the sales dealer or sales engineer -
Factory workshop Cleaning Coal Mine
Cutting and welding Refueling vehicles Lubrication Industry
Fire safety Papermaking Equipment Road Maintenance
Chemical factory Airport ground handling Hydraulic power
Car maintenance Electrostatic discharge Special vehicles
Bio medicine Agricultural Machinery Landscaping
Material distribution
-

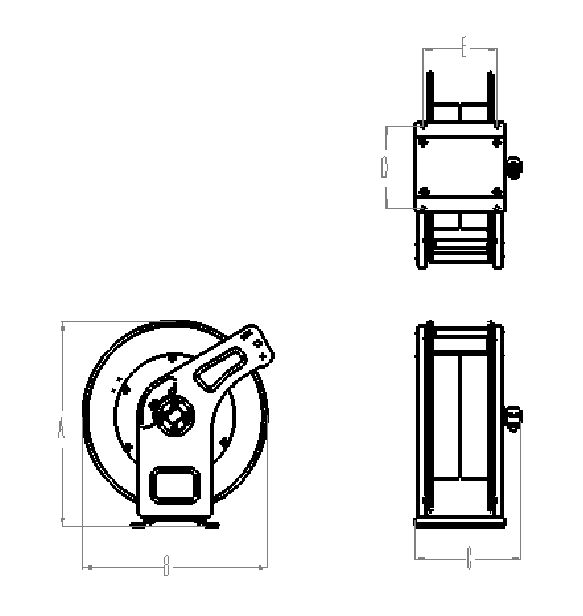

Reel Dimensions Size Index 1 mm Inch A 498 19 5/8 B 460 18 1/8 C 262 10 3/8 D 185 7 1/4 E 200 7 7/8 The four fixing holes at the bottom of the base are 10.5. 490 reel need to be consulted.
