EB520 Hose Reel Spring Driven

Item No.:

EB520SR08H

Reel Weight:

52

Max Pressure:

5076

Hose I.D.:

1/2

Hose O.D.:

0.906

Hose Outlet:

M22X1.5

Reel Inlet:

M22X1.5

Max Hose Length:

65

Driven Type:

Spring Driven

Size Index:

1

Note:

Product Customization is acceptable.

Product Consulting
  • Description
  • Features
  • Specifications
  • Applications
  • Size Index
  • Downloads
    • Commodity name: EB520 Hose Reel Spring Driven
    • Commodity ID: EB520SR08H
    • Item No.: EB520SR08H
    • Reel Weight: 52
    • Max Pressure: 5076
    • Hose I.D.: 1/2
    • Hose O.D.: 0.906
    • Hose Outlet: M22X1.5
    • Reel Inlet: M22X1.5
    • Max Hose Length: 65
    • Driven Type: Spring Driven
    • Size Index: 1
    • Note: Product Customization is acceptable.

    Ebenalp high-pressure hose reel and ultra-high pressure cleaning reel unit are widely used in street cleaning vehicles, sanitation vehicles, factory workshops, auto repair shops, 4S shops, machinery and shipbuilding industries, Large mechanical and electrical maintenance, food and chemical high-pressure cleaning, municipal sanitation pipeline dredging and cleaning, flower and tree root carving process , tap water pipeline trenchless cleaning, rust and dirt removal, etc.

    The reel is used to transfer pressure fluid, water, gas and other fluids. The highest pressure can reach 300Mpa.

    The reel is made of high-strength steel, which is integrally drawn by a mold, and the structural frame is stamped and formed, with high strength, no deformation, durable, and can be used in complex environments.

    Key words:
    • High-pressureCleaningHoseReel
    • springDriven
  • 1. The reel is designed with hose tensioning function to ensure that the hose will not be scattered during use

    2. Adopt international top high-pressure hose to ensure no leakage and no explosion under high pressure and ultra-high pressure.

    3. The surface of the main structure is painted or sprayed, which is not easy to rust or oxidize.

    4. Open rotary joint to ensure the transmission energy of high-pressure water with minimum pressure loss.

    5. Supporting structure bracket, strong strength suitable for vehicle or horizontal installation, The direction of the guide arm can be adjusted as required.

    6. The guide frame provides multiple hose outlet orientation requirements to meet the needs of actual operating conditions.

    7. Optional material: carbon steel/aluminum alloy/stainless steel

  • Model Reel Weight Max Pressure HOSE  I.D. HOSE  O.D. Hose Outlet Reel Inlet Max Hose Length Model Weight Max Pressure Size Index
    kg lbs bar psi mm Inch mm Inch mm mm m ft kg lbs bar psi
    EB520SR06H+Length 24 52 350 5076 10  3/8 20     0.787  M18X1.5 M22*1.5 30 98 EB520SR06H 24 52 350 5076 1
    EB520SR08H+Length 24 52 350 5076 13  1/2 23     0.906  M22X1.5 M22*1.5 20 65 EB520SR08H 24 52 350 5076 1
    If you want to replace other hose models and lengths, please consult the sales dealer or sales engineer
  • 1. Factory workshop

    2. Auto Repair Factory 4S Shop

    3. Machinery and shipbuilding industry

    4. Large mechanical and electrical maintenance

    5. Food chemical high pressure cleaning

    6. Municipal sanitation pipeline dredging and cleaning

    7. Flower and tree root carving craft cleaning and other occasions

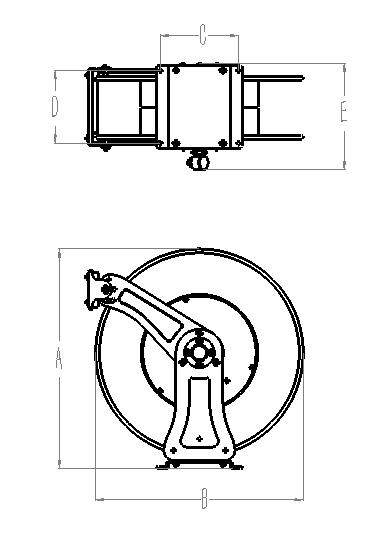

  • Reel Dimensions
    Size Index 1
      mm Inch
    A 561 22 1/8
    B 520 20 1/2
    C 200 7 7/8
    D 185 7 1/4
    E 273 10 3/4
    The four fixing holes at the bottom of the base are 10.5.
