- Commodity name: Hand-operated Cleaning Hose Reel
- Commodity ID: EB440MRSH050D10CC
- Item No.: EB440MRSH050D10CC
- Reel Weight: 60
- Max Pressure: 5076
- Hose I.D.: 1/2
- Hose O.D.: 0.827
- Hose Outlet: M22X1.5
- Reel Inlet: M22X1.5
- Max Hose Length: 82
- Driven Type: Hand Crank
- Size Index: 1
- Note: Product Customization is acceptable.
Ebenalp high-pressure hose reel and ultra-high pressure cleaning reel unit are widely used in street cleaning vehicles, sanitation vehicles, factory workshops, auto repair shops, 4S shops, machinery and shipbuilding industries, Large mechanical and electrical maintenance, food and chemical high-pressure cleaning, municipal sanitation pipeline dredging and cleaning, flower and tree root carving process , tap water pipeline trenchless cleaning, rust and dirt removal, etc.

The reel is used to transfer pressure fluid, water, gas and other fluids. The highest pressure can reach 300Mpa.

The reel is made of high-strength steel, which is integrally drawn by a mold, and the structural frame is stamped and formed, with high strength, no deformation, durable, and can be used in complex environments.
1. The reel is designed with hose tensioning function to ensure that the hose will not be scattered during use

2. Adopt international top high-pressure hose to ensure no leakage and no explosion under high pressure and ultra-high pressure.

3. The surface of the main structure is painted or sprayed, which is not easy to rust or oxidize.

4. Open rotary joint to ensure the transmission energy of high-pressure water with minimum pressure loss.

5. Supporting structure bracket, strong strength suitable for vehicle or horizontal installation, The direction of the guide arm can be adjusted as required.

6. The guide frame provides multiple hose outlet orientation requirements to meet the needs of actual operating conditions.

7. Optional material: carbon steel/aluminum alloy/stainless steel

Model	Reel Weight		Max Pressure		HOSE I.D.		HOSE O.D.		Hose Outlet	Reel Inlet	Max Hose Length		Model	Weight		Max Pressure		Size Index
Model	kg	lbs	bar	psi	mm	Inch	mm	Inch	mm	mm	m	ft	Model	kg	lbs	bar	psi	Size Index
EB440MRSH050D10CC	27	60	350	5076	10	3/8	18	0.709	M18X1.5	M22X1.5	30	98	EB440MRSHD10CC	27	60	350	5076	1
EB440MRSH040D13CC	27	60	350	5076	13	1/2	21	0.827	M22X1.5	M22X1.5	25	82	EB440MRSHD13CC	27	60	350	5076	1
If you want to replace other hose models and lengths, please consult the sales dealer or sales engineer

1. Factory workshop

2. Auto Repair Factory 4S Shop

3. Machinery and shipbuilding industry

4. Large mechanical and electrical maintenance

5. Food chemical high pressure cleaning

6. Municipal sanitation pipeline dredging and cleaning

7. Flower and tree root carving craft cleaning and other occasions

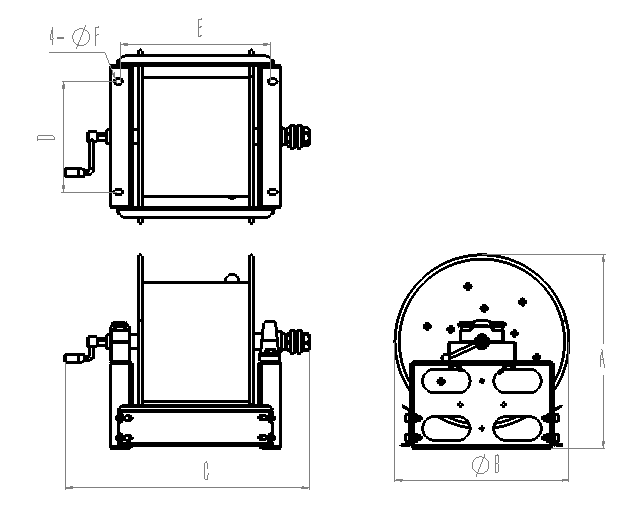

Reel Dimensions
Size Index	1
	mm	Inch
A	490	19 1/4
B	440	17 3/8
C	616	24 1/4
D	280	11
E	380	15
F	13	1/2
