Lightning Current Shunt (RGF)

Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
EB432SRGR
Category：
Products
Quantity
-
+
Stock:
0

For more information, please send an email or call our hotline.

13586898919
info@ebenalp.com
Item Code:
EB432SRGR
Reel Weight:
77 lbs
Current:
300 amp
Max Cable Length:
89 ft
Size Index:
1
Driven Type:
Spring Driven
Note:
Product Customization is Acceptable
Descrpition :

Using high-quality round copper single strand or multiple strands braided into copper tape or cable

1
Description
Parameters
Features
Specification
Application
Size Index

Ebenalp anti-static cord reel is an anti-static standardized product specially designed for oil storage, loading and unloading occasions. It can lead the static electricity generated during liquid storage and transportation into the earth.

The products are manufactured in accordance with the petrochemical industry standards, and the materials selected are exquisite.

It is suitable for use in occasions where anti-static is required, such as oil and gas storage tanks, gas stations, chemical plants and paint plants, and oil transfer equipment.

Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table

1. The anti-static copper braided wire can be automatically and evenly retracted, and it can also be positioned at any position during the stretching process, which greatly facilitates the operation.

2. The product shell is made of stainless steel, exquisite and beautiful, moisture-proof, corrosion-resistant, and oil-resistant.

3. It can automatically detect the grounding condition in the whole process. When the grounding is poor or disconnected, an audible alarm will be issued to ensure the safety of production operations.

4. The slip ring of the grounding reel is more focused on low resistance design, which can achieve fast conduction and achieve high efficiency in operating conditions such as static electricity removal.

5. Designed with coil spring cavity waterproof structure to extend the product life .

6. Provide multiple exit orientations to meet the needs of installation at different angles.

Model Reel Weight Descrpition  Current Max Cable Length Size Index
kg lbs   amp m ft
EB432SRGR+lengthS01SS 35 77  Using high-quality round copper single strand or multiple strands braided into copper tape or cable 300 27 89  1
If you want to replace other cable models and lengths, please consult the sales dealer or sales engineer

1. Power supply,

2. Signal transmission

3. Discharge,

4. gas station,

5. tanker truck,

6. fuel transportation

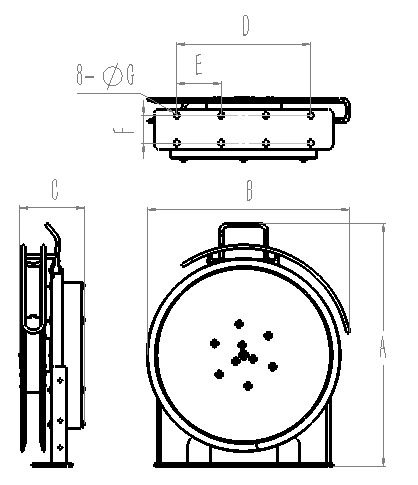

Reel Dimensions
Size Index 1
  mm Inch
A 544 21 3/8
B 454 17 7/8
C 144 5 5/8
D 300 11 3/4
E 100 3 7/8
F 62 2 1/2
G 11  3/8
