EF520 Oxygen Acetylene Reel
Belonging to the series:
EF520 Oxygen Acetylene Reel
Item No.:
EF520SRTH
Reel Weight:
55
Max Pressure:
Hose I.D.:
3/8
Hose O.D.:
0.630
Hose Outlet:
Reel Inlet:
Max Hose Length:
82
Driven Type:
Spring Driven
Size Index:
1
Note:
Product Customization is acceptable.
- Description
- Features
- Specifications
- Applications
- Size Index
- Downloads
-
- Commodity name: EF520 Oxygen Acetylene Reel
- Commodity ID: EF520SRTH
- Item No.: EF520SRTH
- Reel Weight: 55
- Hose I.D.: 3/8
- Hose O.D.: 0.630
- Max Hose Length: 82
- Driven Type: Spring Driven
- Size Index: 1
- Note: Product Customization is acceptable.
Ebenalp spring type reel is based on the principle of mechanical energy storage by the coil spring installed in the cylinder, and realizes automatic rewinding without other control elements. It is currently the most widely used and most economical mechanically driven rewinding method. The working length of the hose or cable can be locked by the ratchet pawl on the reel, and the operation is very safe and convenient
-
1.The reel is designed with side support and double support structure
2. The guide frame provides multiple hose outlet orientation requirements to meet the needs of actual operating conditions.
3. Optional material: carbon steel/galvanized/ surface spray / carbon steel spray / aluminum alloy/stainless steel
4. Other materials accept customization
-
Model Model (ratchet lock) Reel Weight HOSE I.D. HOSE O.D. Max Hose Length Size Index kg lbs mm Inch mm Inch m ft EF520SRTH+Length EFRW520SRTH+Length 25 55 8 3/8 16 0.630 25 82 1 If you want to replace other hose models and lengths, please consult the sales dealer or sales engineer -
1. Factory workshop
2. Auto Repair Factory 4S Shop
3. Machinery and shipbuilding industry
4. Large mechanical and electrical maintenance
5. Food chemical high pressure cleaning
6. Municipal sanitation pipeline dredging and cleaning
7. Flower and tree root carving craft cleaning and other occasions
-

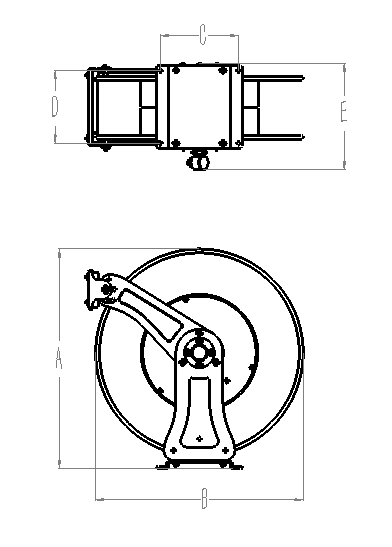

Reel Dimensions Size Index 1 mm Inch A 561 22 1/8 B 520 20 1/2 C 200 7 7/8 D 185 7 1/4 E 273 10 3/4 The four fixing holes at the bottom of the base are 10.5
