    • Commodity name: Four-way Hose Reel for Construction Machinery
    • Commodity ID: EB600SRMH006S19CC
    • Item No.: EB600SRMH006S19CC
    • Reel Weight: 154
    • Work Pressure: 35
    • HOSE I.D.: 3/4
    • HOSE O.D.: 1.260
    • Hose Outlet: M30X1.5
    • Reel Inlet: G3/4
    • Max Hose Length: 23
    • Size Index: 1
    • Driven Type: Spring Driven

    Construction machinery reel is also called reciprocating follow-up reel.

    Often used on some mechanical telescopic arms, such as : The hydraulic hose of the luffing cylinder of the crane, Signal cable on mechanical telescopic arm, Power cable, Compressed air hose, The shield segment anchors the robotic arm.

    The retracting method of the engineering reciprocating reel is to follow the telescopic variable distance of the robotic arm. Thereby, the medium and signal transmission problems of this kind of equipment are well solved.

  • 1. Construction machinery reels generally have two-way hoses, three-way hoses and more than four-way hoses.

    2. It can also have several functions such as hoses and cables at the same time, Usually called electro-hydraulic integrated follow-up reel.

    3. This type of reel generally needs to be customized according to the actual equipment requirements of the customer.

  • Model Reel Weight Work pressure HOSE  I.D. HOSE  O.D. Hose Outlet Reel Inlet Max Hose Length Size Index
    kg lbs Mpa mm Inch mm Inch mm BSP m ft
    EB600SRMH006S19CC 70 154  35 19  3/4 32 1.260  M30X1.5 G3/4 7 23  1
    If you want to replace other hose models and lengths, please consult the sales dealer or sales engineer
  • Cranes, pavers, milling machines, excavators, stretchers, road recycling equipment, sweepers, drainage vehicles, dredging vehicles, fire trucks, shield machines, wet spraying machines etc.

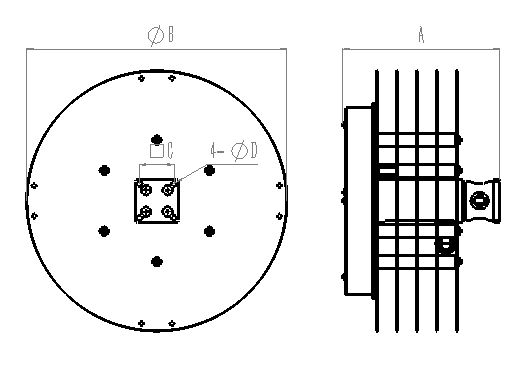

  • Reel Dimensions
    Size Index 1
      mm Inch
    A 361 14 1/4
    B 600 23 5/8
    C 80 3 1/8
    D 12.5  1/2
