Product Category
Mining Hand Cranking Cleaning Hose Reel
Belonging to the series:
Mining Hand Cranking Cleaning Hose Reel
Item No.:
EB460MRSH
Reel Weight:
49
Max Pressure:
5076
Hose I.D.:
3/8
Hose O.D.:
0.709
Hose Outlet:
M18X1.5
Reel Inlet:
M22*1.5
Max Hose Length:
295
Driven Type:
Hand Crank
Size Index:
1
Note:
Product Customization is Acceptable
- Description
- Features
- Specifications
- Applications
- Size Index
- Downloads
-
- Commodity name: Mining Hand Cranking Cleaning Hose Reel
- Commodity ID: EB460MRSH
- Item No.: EB460MRSH
- Reel Weight: 49
- Max Pressure: 5076
- Hose I.D.: 3/8
- Hose O.D.: 0.709
- Hose Outlet: M18X1.5
- Reel Inlet: M22*1.5
- Max Hose Length: 295
- Driven Type: Hand Crank
- Size Index: 1
- Note: Product Customization is Acceptable
Agriculture and mining reels are used for long-distance transportation of irrigation water, liquid fertilizers, and mine drainage. It is used with mobile pumping station and fixed pumping station.
In addition to hose reels, large cable reels used in agriculture, animal husbandry and mining are also a very common equipment used to provide power, control, and signal transmission to mobile devices.
-
Agriculture and mining reels are used for long-distance transportation of irrigation water, liquid fertilizers, and mine drainage. It is used with mobile pumping station and fixed pumping station.
In addition to hose reels, large cable reels used in agriculture, animal husbandry and mining are also a very common equipment used to provide power, control, and signal transmission to mobile devices.
-
Model Reel Weight Greatest Pressure HOSE I.D. HOSE O.D. Hose Outlet Reel Inlet Maximum hose length Model Weight Greatest Pressure Size Index kg lbs bar pis mm Inch mm Inch mm mm m ft kg lbs bar psi EB460MRSH+LengthD10CC 22 49 350 5076 10 3/8 18 0.709 M18X1.5 M22*1.5 90 295 EB460MRSHD10CC 22 49 350 5076 1 If you want to replace other hose models and lengths, please consult the sales dealer or sales engineer -
1. It is used for long-distance transportation of irrigation water, liquid fertilizers, and mine drainage.
2. It is used with mobile pumping station and fixed pumping station.
3. It is used to provide power, control, and signal transmission to mobile devices.
-

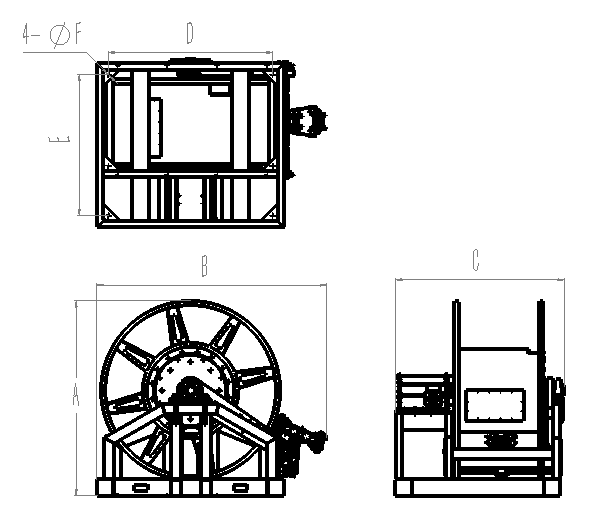

Reel Dimensions Size Index 1 mm Inch A 485 19 1/8 B 490 19 1/4 C 502 19 3/4 D 381 15 E 268 10 1/2 F 12 1/2
